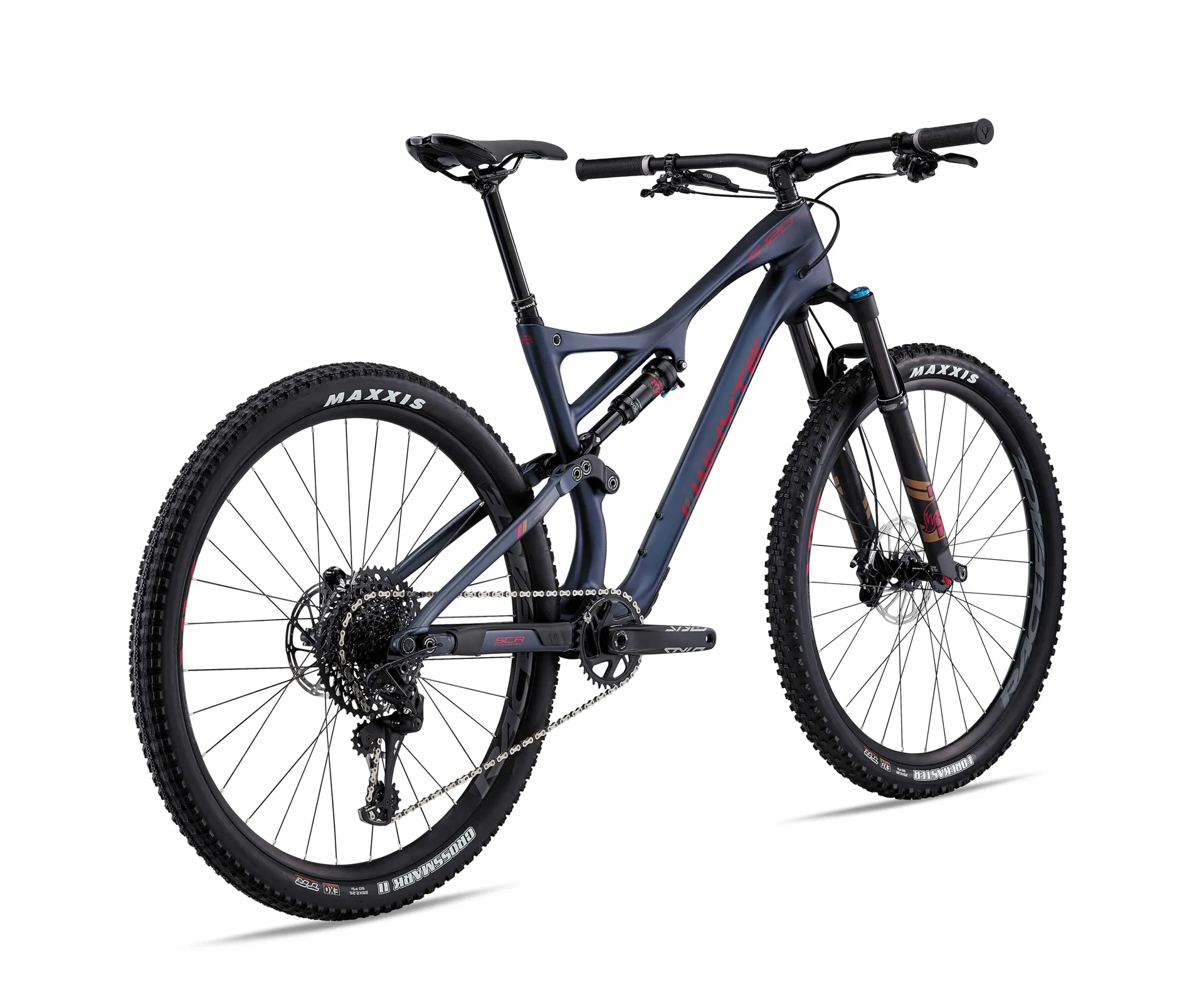

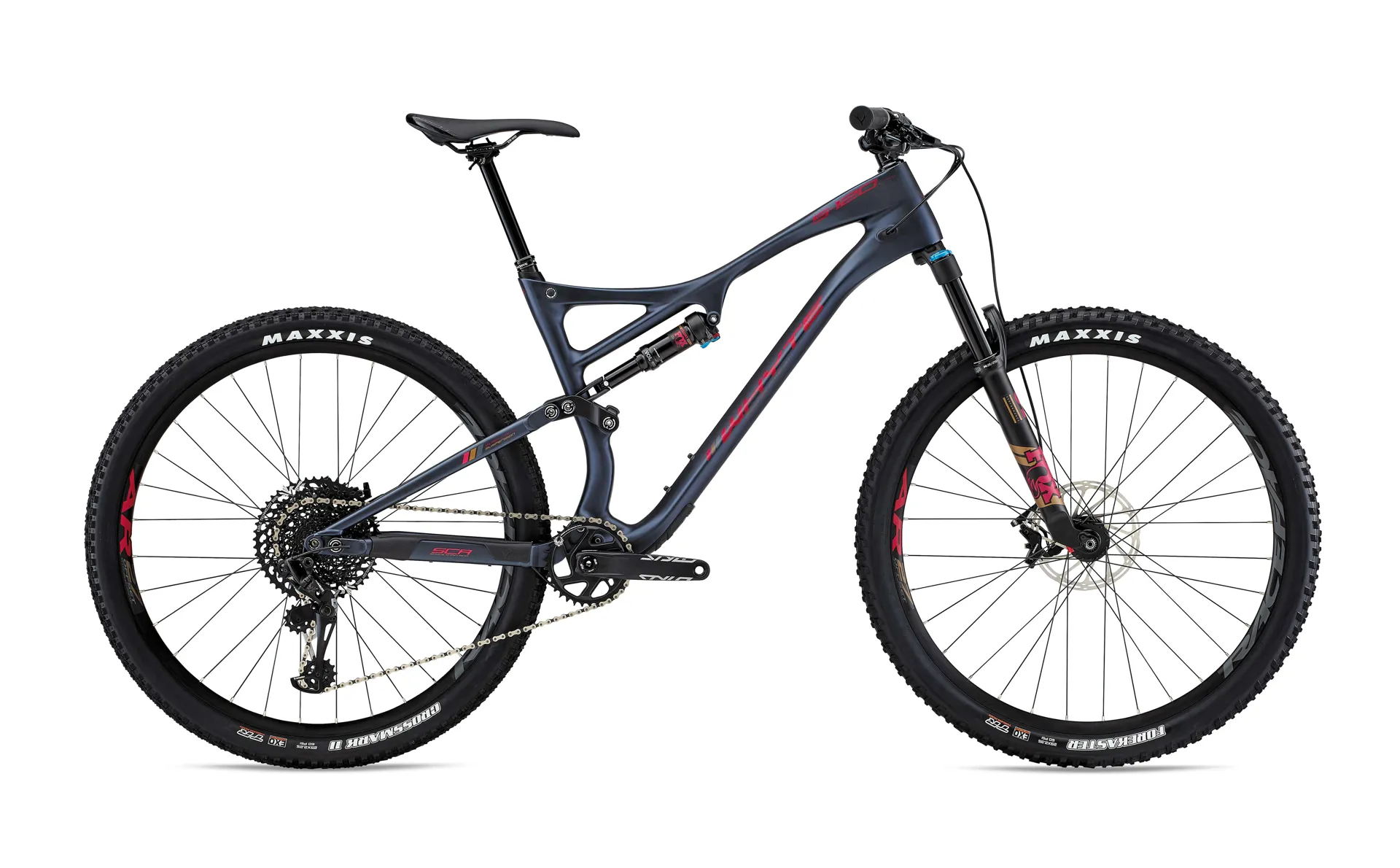

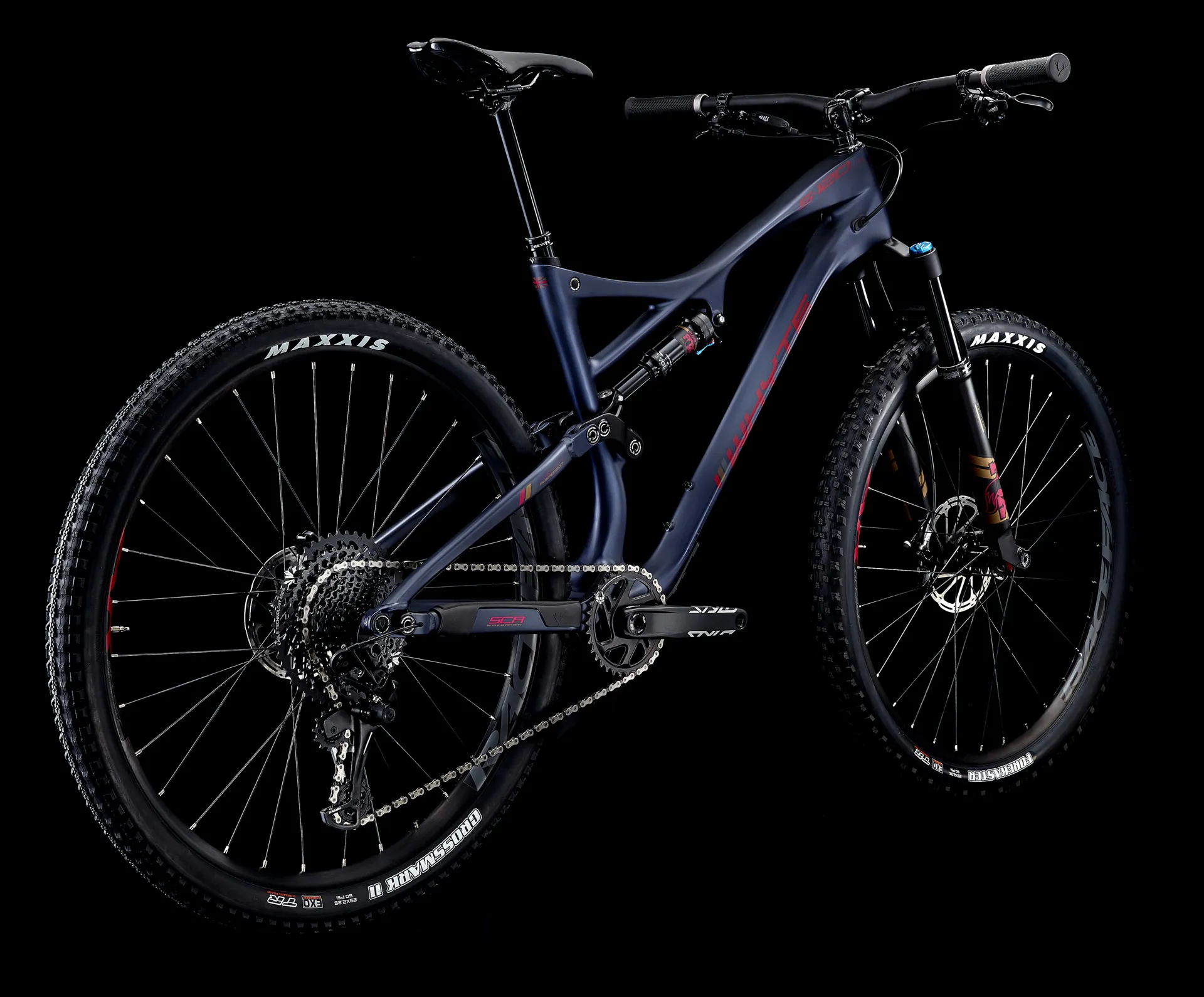

Our brand-new S-120 frame takes everything we learnt from developing the multi-award-winning S-150 suspension system and applies it to this immensely capable new 120mm platform.
The S-120 is a perfect replacement for the iconic T129, which gave Whyte its 1st Bike Of The Year award. Designed to be an all-round XC/Trail bike from epic marathons to a flat our blast down your local single track, this bike will allow you to do it all.
The S-120 geometry was design to have a short 44mm offset fork and this combined with the all new Fox 34 SC, gives amazing handling. This fork was designed to be the ultimate Trail 120mm 29er fork.
COLOUR Matt Midnight with Dark Red/Bronze/Grey
FRAME Carbon, Uni-directional Multi Monocoque Front Triangle with Internal Cable Routing, Tapered Head Tube, Intergrip Seat Clamp System, Alloy Symmetrical SCR Rear Triangle and 148mm Boost Dropouts
FORK Fox Float Performance SC 34, Step Cast, 29", 120mm Travel, 44mm Offset, GRIP 3-Pos Damper, Tapered Steerer, Black Coating, 110mm x 15mm Boost, E-Thru Axle
REAR SHOCK Fox Float DPS, Performance, Black Coating, Rebound Adjustment and 3pos Adjust Evol LV
HEADSET FSA No. 42 Orbit ZS Plus, Integrated, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
REAR HUB Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Through Axle, Micro Engagement 6 Pawl, XD Driver, 32 Hole
FRONT HUB Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 32 Hole
SPOKES DT Swiss Factory 2.0mm, Black Stainless, Brass Nipples
RIMS RaceFace AR-27, Offset, 27mm Wide, Sleeved Joint, Tubeless Ready, 32 Hole
TYRE Maxxis Forekaster TR 29" x 2.3" 60TPI Dual Compound, EXO Sidewall Protection, Front, Maxxis Crossmark II TR 29" x 2.25" 60TPI Dual Compound, EXO Sidewall Protection, Rear
SHIFT LEVERS SRAM GX Eagle, MMX, 12 Speed
FRONT MECH N/A
REAR MECH SRAM GX Eagle, 12 Speed
CASSETTE SRAM XG-1275 Eagle, 10-50, 12 Speed
CHAIN SRAM Eagle, 12 Speed
CRANKSET SRAM Stylo 7K Eagle, X-SYNC 2, Direct Mount 34T, DUB, 175mm, Boost, 12 Speed
BOTTOM BRACKET SRAM DUB, BSA, 73mm
SEATPOST Bike Yoke Revive, 30.9mm, S 125mm Travel, M/L/XL 160mm Travel, Trigger Remote with MMX attachment
SADDLE Whyte Custom Dual Density, Triple Panel Design
HANDLEBAR Whyte 6061 Alloy, 15mm Low Rise, 31.8mm, 780mm Wide
STEM Whyte Gravity Stem, 40mm Extension
GRIPS Whyte Lock-on V Grip
BRAKES FRONT SRAM Guide RS, 4 Pot, 180mm Rotor
BRAKES REAR SRAM Guide RS, 4 Pot, S/M/L 160mm, XL 180mm Rotor, Internal Routing
BRAKE LEVERS SRAM Guide RS, MMX
PEDAL None
WEIGHT 13.3Kg
