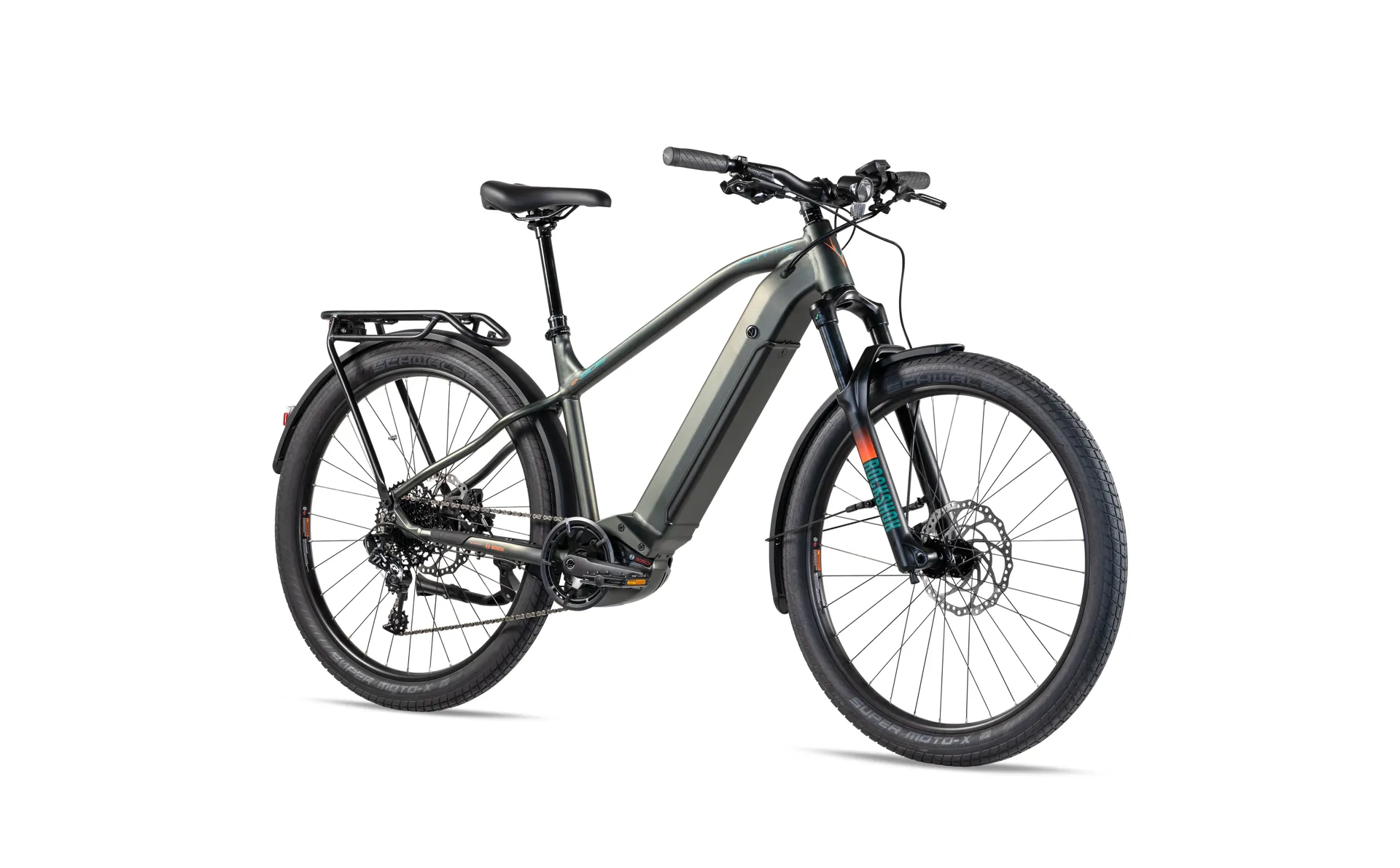

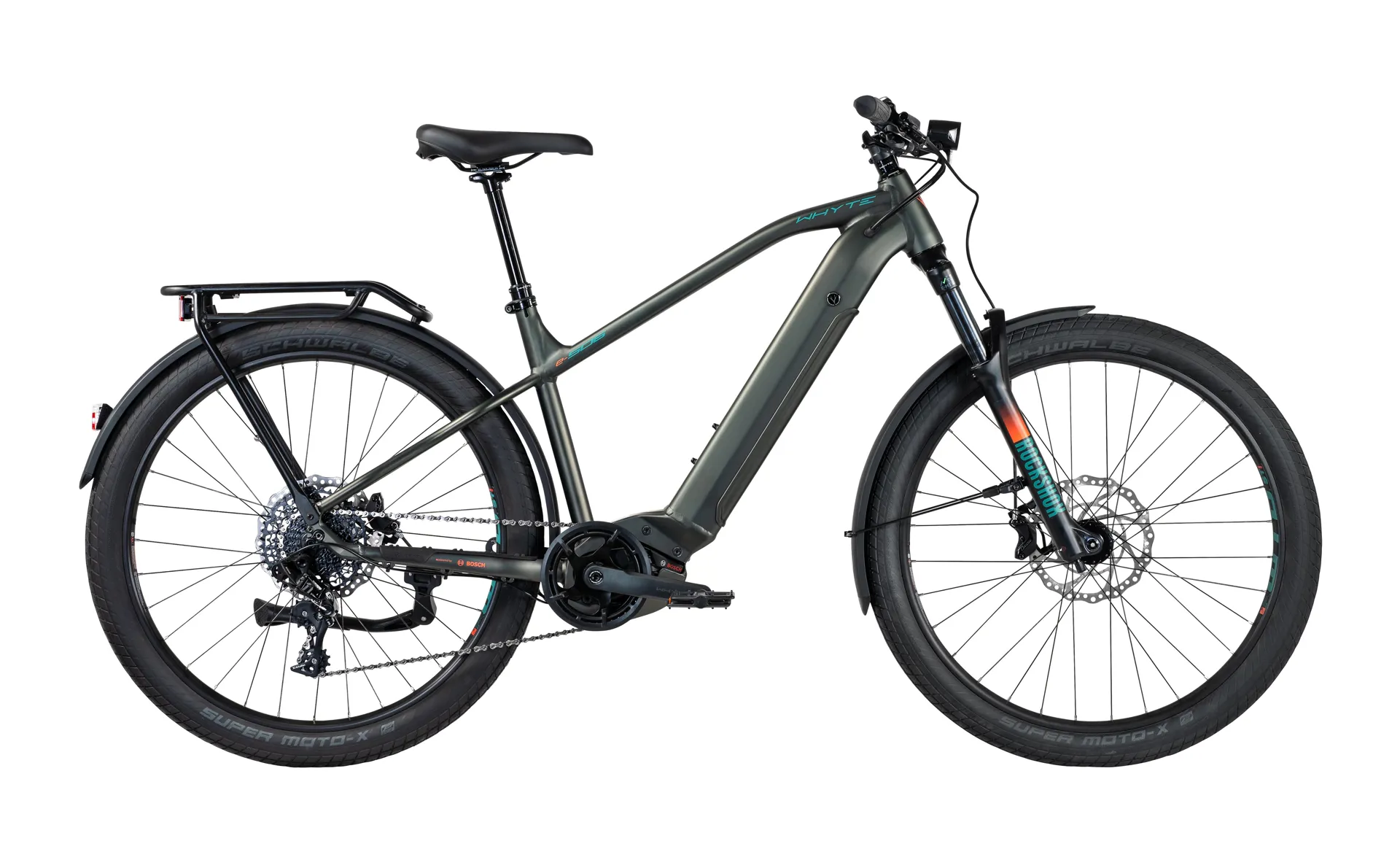

The super-versatile, multi-role e-506 takes a big leaf out of their MTB design book with Whyte trail geometry for sure-footed mountain bike handling - exactly what you need in traffic when your panniers are fully loaded.
The super-versatile, multi-role e-506 takes a big leaf out of their MTB design book with Whyte trail geometry for sure-footed mountain bike handling - exactly what you need in traffic when your panniers are fully loaded.
Whyte

WHYTE E-506 LRG V1

£2,799.00 £3,999.00 30% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

WHYTE E-506 LRG V1

Season:2022

Brand:Whyte

Code:WE5063LV1

Like its off-road cousins, the e-506 uses a class-leading Bosch system with the exceptional Performance Line CX Drive Unit, providing all the assistance you need to flatten out your ride and power up your commute.

The 35mm stanchion RockShox 35 Silver front fork and 4 piston Tektro brakes mean comfort and control. These quality off-road developed parts improve your ride whether you’re cutting across town, making a trip to the shops or taking an off-road short-cut home. The e-506 is ready for everything.

Each one of the eMTBs delivers more fun than any other bike they have ever made.
Technical Information
  • Frame:6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
  • Fork:RockShox Silver R 27.5", 120mm Travel, 44mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite
  • Motor:Performance CX 85Nm
  • Battery:Bosch 500 Wh internal PowerTube. 2 Amp Charger
  • Controller:Bosch Purion
  • Number of Gears:12
  • Gear Shifters:SRAM GX Eagle, Single Click, MMX, 12 Speed
  • Chainset:Whyte, Steel narrow/wide, 165mm, Direct Mount 36T for Bosch Performance Line CX, Black
  • Chainrings:36T
  • Rear Cassette:SRAMS PG-1130, 11-42, 11 Speed
  • Chain:KMC NPBK Sport, 11 Speed
  • Front Derailleur:N/A
  • Rear Derailleur:SRAM GX Eagle, 12 Speed
  • Bottom Bracket:N/A
  • Pedals:N/A
  • Rims:WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
  • Front Hub:Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 31mm Torque Caps, 32 Hole
  • Rear Hub:Alloy, E-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Through Axle, 32 Hole
  • Front Tyre:Schwalbe, Super Moto-X, 27.5" x 2.4, Greenguard Puncture Protection
  • Rear Tyre:Schwalbe, Super Moto-X, 27.5" x 2.4, Greenguard Puncture Protection
  • Brakes:Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount, Internal Routing rear
  • Handlebars:Whyte Custom 6061 Alloy, 15-30mm Rise, 31.8mm Bar Bore, 760-780mm Wide
  • Handlebar Grips:Whyte Custom Dual Density Lock-on
  • Headset:FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
  • Stem:Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension
  • Saddle:Whyte Custom, SUV Comfort sport, Single panel, with moulded rear handle
  • Seatpost:Whyte drop.it Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, MMX Paddle Remote Lever
  • Accessories:Bosch Charger
