Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB.

Giant

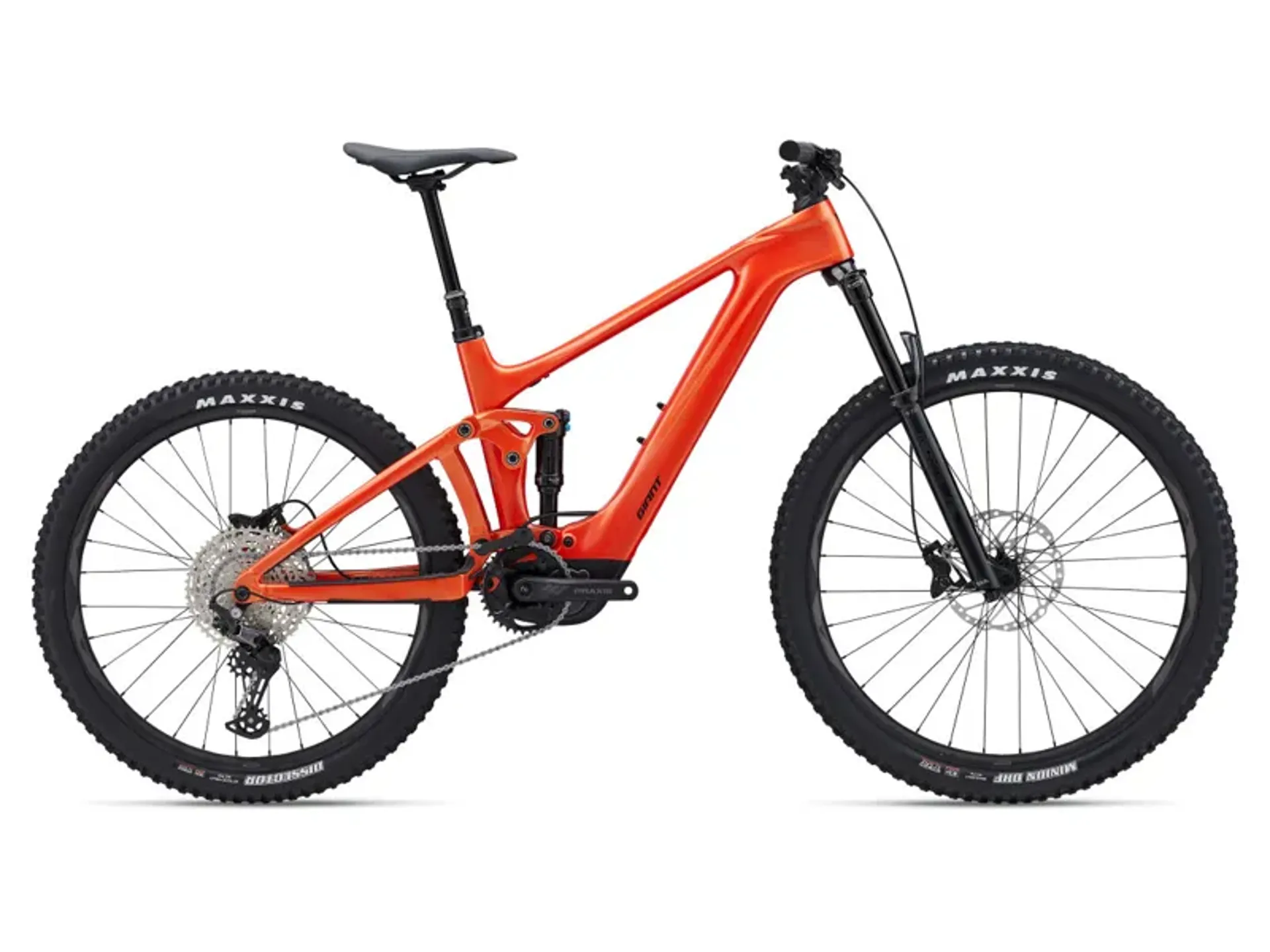

Giant Trance X Advanced E+ EL 3 Electric MTB in Gloss Helios Orange

£3,799.00 £5,499.00 31% off

Size Guide

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle Free Returns

At Banjo Cycles we pride ourselves on our customer reputation. In the unlikely event that you are not 100% happy with your purchase then don’t hesitate to get in touch and well make arranges for the return, a full refund or exchange within 28 days from the purchase.

Any purchase can be returned to us for any reason, provided it is received by us in an unused condition in/or with its original packaging and receipt. Should the bike have any sign at all of usage or wear and tear, a restocking fee will be charged.

Refunds will be processed using the same method of payment used for the original purchase. Credit & Debit card refunds must be made to the card used for the original purchase. Due to the high incidence of fraud we regret that we are unable to offer any refund without a prior contact via email or telephone.

Giant Trance X Advanced E+ EL 3 Electric MTB in Gloss Helios Orange

Season:2024

Brand:Giant

Code:6028033HeliosORG

Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB.

The ultra-slim battery minimises weight so you can ride technical trails the way you always dreamed of.

EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.

RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.

New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterises SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.

Technical Information

Motor
Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
Controller
Giant RideControl Ergo3, grip integrated remote
Display
Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
Battery
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Charger
Giant EnergyPak 4A smart charger, 60% in 1:45
Connectivity
Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Sizes
S, M, L, XL
Colours
Gloss Helios Orange
Frame
Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Fork
Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
Shock
Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
Handlebar
Giant Contact SL 35 Trail, 35x780mm
Grips
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
Stem
Giant Contact SL 35
Seatpost
Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
Saddle
Giant Romero, Neutral
Pedals
PEDALS NOT SUPPLIED
Shifters
Shimano Deore 1x12
Front Derailleur
MRP HD2 co-moulded chain guide
Rear Derailleur
Shimano Deore
Brakes
Shimano BR-MT420, 4-piston, hydraulic disc,203mm [F/R]
Brake Levers
Shimano Deore, I-spec EV
Cassette
Shimano CS-M6100-12, 10-51T, 12-speed
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimised
Crankset
Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S:160, M/L:165, XL:170)
Bottom Bracket
n/a
Rims
Giant AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R]
Hubs
Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
Spokes
Sapim E-Lite [R] Race [F], e-bike optimised
Tyres
Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Extras
Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
Lighting
Optional:- Giant Recon series e-bike lights available and direct connectable
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
